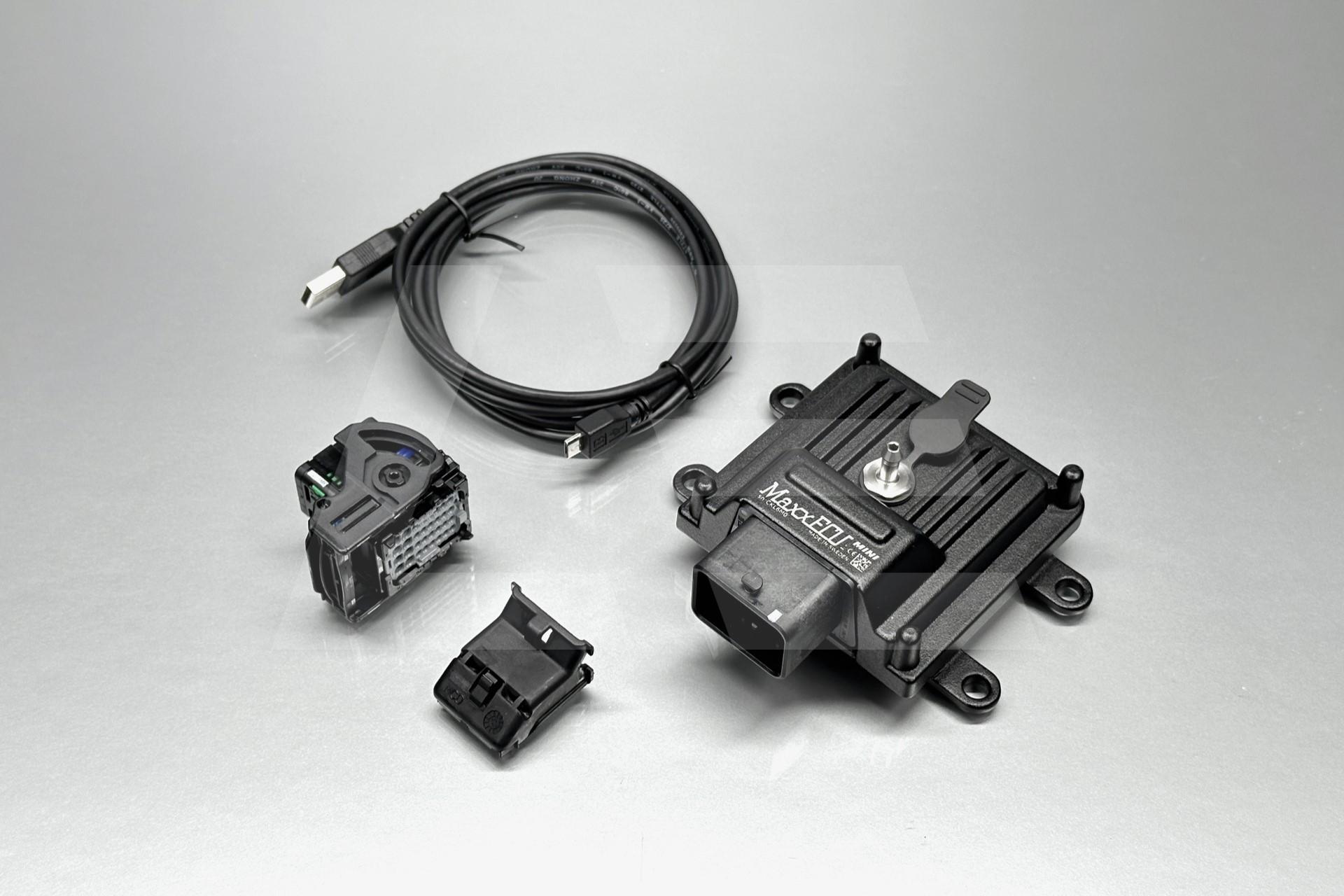

MAXXECU MaxxECU Блок управления Mini Basic 1997

Target engines for MaxxECU MINI
-All 1-4, 6 and 8 cylinder engines
-Up to 4 cylinders fully sequentially (using a digital input as HOME)
-Up to 8 cylinders in wasted spark

MaxxECU MINI inputs
-Intake air temperature sensor (IAT)
-Coolant temperature sensor (CLT)
-Throttle position sensor (TPS)
-1 trigger input (VR/HALL). Automatic trigger level detection
-2 digital inputs used for example for speed sensors (Hall) or switches
-2 extra 0-5V inputs. Can be used for additional sensors such as for measurement of fuel/oil pressure
-Built-in 400kPa MAP-sensor for up to 3bar/43PSI of boost

MaxxECU MINI outputs
-4 injectors outputs. High impedance only
-4 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
-4 outputs for extra features. Can be used to control virtually anything. Fuel pumps, idle control, boost solenoids, nitrous, shift lights, fans, warning lights, etc. GPO 1-3 (2A), GPO 8 (2A)
