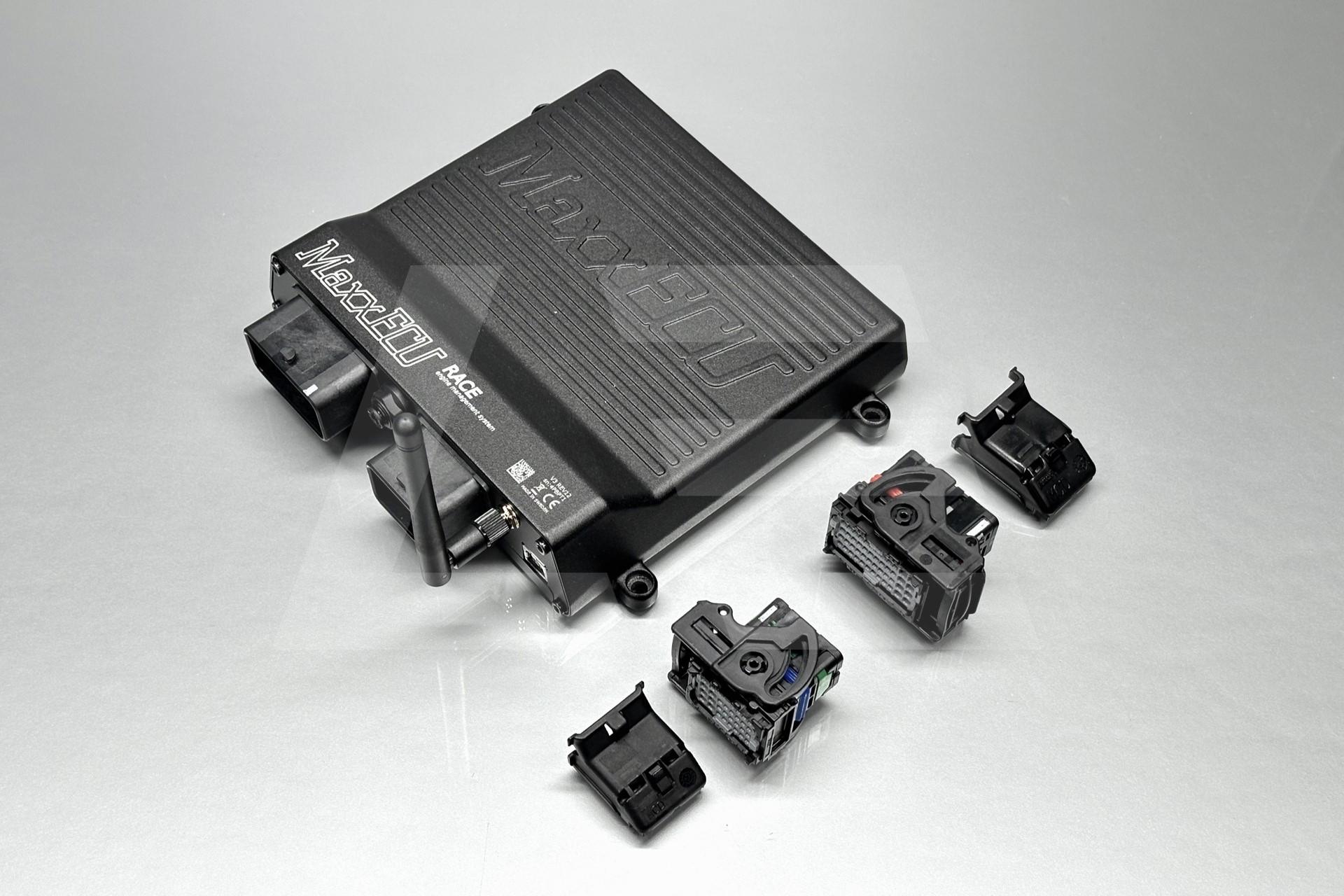

MAXXECU MaxxECU Блок управления Race 1787

В комплект поставки входит:
MaxxECU Разъем 48-ми контактный C1
MaxxECU Разъем 48-ми контактный C1
MaxxECU Антена GPS

Target engines of MaxxECU RACE
-All 1-12 cylinder engines (4-stroke)
-Up to 8 cylinders fully sequentially
-Up to 12 cylinders in wasted spark

MaxxECU RACE inputs
-Intake air temperature sensor (IAT)
-Coolant temperature sensor (CLT)
-Throttle position sensor (TPS)
-Lambda (WBO) sensor. Uses a sensor directly connected to the ECU without any additional electronics. Supports Bosch LSU 4.2 and 4.9
-2 trigger inputs. VR or digital. Automatic trigger level detection. The signals are processed by a completely separated processor for maximum performance and immunity against interference
-2 extra temperature sensors. Can be used as switches or control of additional functions
-2 knock sensor inputs
-6 extra 0-5V inputs. Can be used for additional sensors such as measurement oil/fuel pressure
-4 extra digital inputs used for example speed sensors (VR / Hall) or switches
-8 EGT TYPE-K/N inputs (1200C/2200F) in separate harness

MaxxECU RACE outputs
-8 peak/hold injector outputs. 1-2 high or low impedance injectors per output. 8A per output
-8 ignition outputs. 5V signal to drive ignition modules, CDI units or coils
-9 extra LOW DRIVING outputs for additional features. Can be adjusted to control virtually anything like fuel pumps, idle valves. GPO 1-8,10 (2A), GPO 9 (5A)
-2 extra +12V DRIVING outputs (GPO 15,16) (2A)
-4 extra motor outputs (ex E-Throttle). GPO 11-14 (2A)
